Characteristic
AAVRITII Optical Fiber Joint Enclosure is used to connect two or more optical fiber cables and protect fiber joints from moisture, Dust, insects, and other external objects. This Optical Fiber Joint Enclosure use for Straight joints and Branch joints for armored or unarmored optical fiber cables. Also, suitable for burial in the earth as well as hanging on a pole in the case of Aerial cable. The Joint Enclosure is sufficiently strong and robust to resist the environmental and weather effects.
Features/Benefits
• 4 ports good in practicality with 2 inputs and 2 Outputs
• Suitable for cable up to 96 fibers
• Suitable with most cable constructions – loose tube, skeleton, and ribbon type cables Suitable for aerial, underground, wall mounting, wall mounting in handhole and duct installations
• Multi entry joint closure
• Available for Straight/Branch Joint
• Perfectly water and moisture-proof
• Cable sealing uses a shrinkable tube
Application
Underground, Main Holes,
Buried, Aerial Wall to Pole Mounted
Technical Specification
| Construction Type | Molded pipe shape with one end close and one end open cable |
| Outer Enclosure Material | HDPE, Colour Black |
| Production Standard | IP65 |
| Physical Dimension total | Length (53 cm), Max. Dia. (15 cm) |
| No. of round port (6.5LxØ2.2)cm | 4 |
| No. of oval port (6.5LxØ(7.5×5))cm | 1 |
| Maximum Capacity | 96 Fibers Joint |
| No. of Cassette (6F/12F) | 1 No. |
| No. of Cassette (24F/48F) | 2 or 4 Nos. |
| No. of Cassette (96F) | 6 Nos. |
| Maximum capacity per cassette | 12 to 16 Fibers Joint |

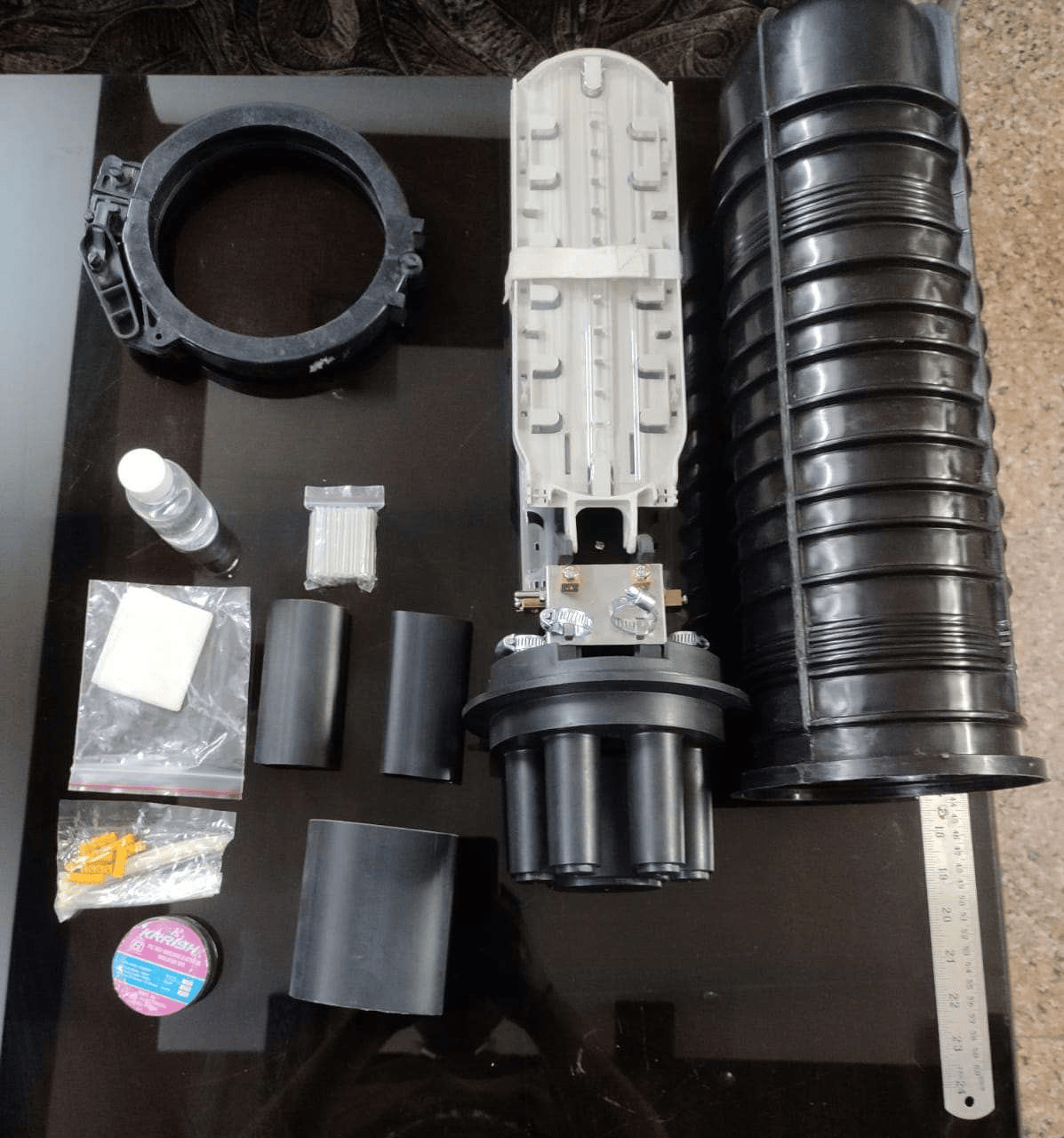

Installation Accessories
| Description | Qty for 24 F | Qty for 48 F | Qty for 96 F |
| Isopropyl Alcohol (IP) | 50 ml | 100 ml | 200 ml |
| Fiber Cleaning Paper (4″x4″) | 4 | 8 | 16 |
| Cable Tie 100mm | 4 | 8 | 16 |
| Identification No | 4 | 8 | 8 |
| Insulation Tape | 1 | 1 | 1 |
| Round heat shrink sleeves min 100 mm length | 2 | 2 | 4 |
| Oval heat shrink sleeves min 100 mm length | 1 | 1 | |
| Splice protection sleeves Length 60 mm | 25 pcs min | 50 pcs min | 100 pcs min |
| Other accessories will be added on the requirement.. | |||
Note: The information contained in this data sheet is subject to normal manufacturing tolerances. Specifications are subject to change on requirement.
